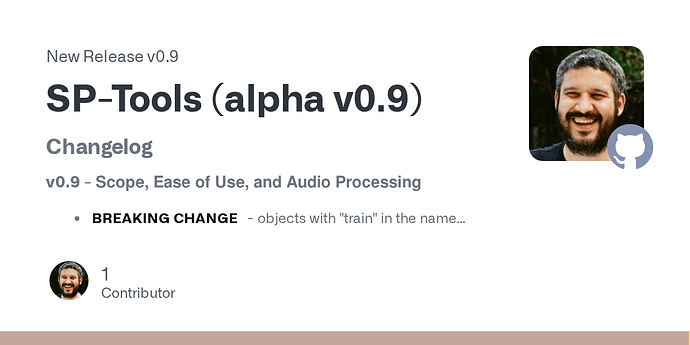

Ok, here’s the next (absolutely massive) update of SP-Tools (v0.9):

The changelog is a bit long for this one (still pasted below), but the broad strokes are a complete rework of the scope of the project such that it no longer assumes “drums” as the default audio input, so it is more broadly usable by all sorts of input. (It is still super optimized for drums and low-latency stuff, but if there’s a selectable option (e.g. for Sensory Percussion hardware), it is no longer the default setting). There’s also been a massive amount of work done to improve the ease of use and overall discoverability. The overview patch reflects this as you can browse by objects/categories, use cases, or just musical examples directly. Finally there are a bunch of new patches for audio processing and signal decomposition.

Changelog

v0.9 - Scope, Ease of Use, and Audio Processing

  • BREAKING CHANGE - objects with “train” in the name (sp.classtrain, sp.clustertrain, sp.setuptrain~) have been renamed to be more consistent with other objects (sp.classcreate, sp.clustercreate, sp.setupcreate~)
  • BREAKING CHANGE - sensitivity parameter in all onset-based objects has been fine-tuned to work across a wider range of instruments and materials so your previous settings may likely need adjusting
  • BREAKING CHANGE - threshold parameter renamed to floor in all onset-based objects (sp.onset~, sp.onsetframe, sp.descriptors~, sp.melbands~, sp.mfcc~, sp.sines~, etc…)
  • BREAKING CHANGE - threshold parameter renamed to sensitivity in sp.novelty~ keeping it inline with other onset detection objects macro controls (sp.onset~, sp.spectralonset~)
  • BREAKING CHANGE - mode parameter renamed to timestretchmode in sample playback objects keeping to remove clash with the new mode attribute
  • BREAKING CHANGE - input mode order and modes changed on all onset-based object (sp.onsetframe, sp.descriptors~, sp.melbands~, sp.mfcc~, sp.sines~, etc…)
  • BREAKING CHANGE - clusters trained with sp.clustertrain now count from 1 instead of 0 and are returned as ints instead of a symbols (so a 1 instead of a “1”)
  • BREAKING CHANGE - sp.classifierdisplay @drum attribute reworked to @defaultdisplay
  • BREAKING CHANGE - fade in/out and curve parameters renamed in sp.corpusplayer~ to be consistent with the new sp.sampler~ (attack=in, hold=out(and inverted), attackcurve=incurve, holdcurve=outcurve)
  • overview patch (SP-Tools Overview.maxpat) completely revamped with better discoverability and package navigation
  • added snippets for common use cases to SP-Tools package (accessible via the snippets side panel)
  • restructured Max Package folders to make it easier to navigate and add additional corpora
  • restructured github repo to separate versions (Max, pd), Max for Live devices, and additional corpora
  • added class-combined versions of all descriptor analysis objects making it easier to get classification combined with descriptor analysis (sp.classdescriptors~, sp.classmfccs~, etc…)
  • added sp.controllermatch to browse corpora using a single parameter
  • added sp.controllerptich to create pitch-quantized melodic phrases from a single parameter
  • added zero-latency convolution (sp.convolver~) which allows for reverb, amp sim, mic correction, and any other convolution-based audio processes
  • added convolution-based corpus matching via sp.corpusconvolver~ which combines corpus matching and realtime convolution
  • added combined abstractions for common processes (sp.corpusanalysis~, sp.corpussampler~)
  • substantially improved core concatenation algorithm
  • added radius and neighbor selection in concat matching
  • added pitch and loudness compensation to concat playback
  • added transpose and pretranspose to concat playback
  • added sp.corpusclustermatch for creating clusters from corpora, allowing for grouping of similar sounds within a corpus (e.g. kick, snare, hat, etc…)
  • added objects for shaping and processing descriptor lists (sp.descriptorcurves, sp.descriptorreplace)
  • added an envelope follower with some quirky features (sp.envelope~)
  • added sp.gridscale for scaling and shifting XY-based controller inputs (combines well with sp.gridmatch and the new sp.boppad)
  • added pitch and time quantization with sp.quantizepitch and sp.quantizetime~
  • added data and clock sequencers with sp.sequenceclock~ and sp.sequencedata~
  • added Schmitt filter for descriptor filtering for when you need hysterisis in the filtering (sp.schmitt)
  • added various audio processes for splitting and decomposing signals (sp.scatter~, sp.scramble~, sp.shatter~, sp.shattercreate~, sp.sift~, sp.smear)
  • added spectral-difference onset detection (sp.spectralonset~)
  • added new kitchensink descriptor type, as a combination of descriptor/melband/MFCC buffers which comes in onset, real-time, and class-based variants (sp.kitchensink~, sp.kitchensinkrt~, sp.classkitchensink~)
  • added neural network classifier type to sp.classtrain, sp.clustertrain, and sp.classmatch for greatly improved speed and accuracy
  • added support for the BopPad controller (sp.boppad)
  • added input modes to all the physical modeling objects (sp.karplus~, sp.resonators~, sp.shaker~, sp.waveguidemesh~) allowing for realtime actuation of the models, in addition to onset/trigger-based actuation
  • added ability to reverse and loop samples, and jump directly to sample position in sp.corpusplayer~
  • added @mode attribute to sp.onsetframe~ to switch between amplitude and spectral onset detection (also impacts all onset-based descriptors objects (sp.descriptors~, sp.melbands~, sp.mfcc~, sp.sines~, etc…))
  • added ability to seed clusters in sp.clustertrain
  • added utility for subdividing a spaces of arbitrary size and steps (sp.slicecurve)
  • added utility for time-alining trigger/gates with descriptor output (sp.triggeralign~)
  • added utility for increasing the length of triggers and gates (sp.triggerlength~)
  • added AHR-style envelope with sp.triggershape~
  • improved time-alignment for trigger/gate outputs of descriptors objects (sp.descriptors~, sp.melbands~, sp.mfcc~, sp.sines~, etc…)
  • reworked sp.classifierdisplay to automatically load class names from all class matching objects
  • reworked sp.descriptordisplay to automatically display the correct type of descriptor
  • added dump output message to all class-based objects (sp.classmatch, sp.classdescriptors, etc…)
  • added mic correction (via a new input mode attribute @input 5) to all onset-based descriptor analysis objects for better descriptor results when using only an SP sensor
  • added @buffer attribute to sp.corpusplayer~ to simplify non corpus-based sample playback
  • added @history attributes to all realtime descriptor objects (sp.descriptorsrt~, sp.melbandsrt~, sp.mfccrt~, sp.sinesrt~) to smooth descriptors
  • added @input modes to sp.onset~ allowing for optional filters optimized for different input types
  • added onthreshold and offthreshold to sp.novelty~ given you finer grain control of thresholding
  • improved (and fixed) melband transposition in sp.datatranspose
  • added optional arguments to all corpus matching abstractions to load corpus and setups automatically (e.g. sp.corpusmatch corpus_china setup_snare will automatically load the China Cymbal corpus and load/enable the snare setup)
  • added ability to load default files to all .json loading objects (e.g. sp.resonators~ resonators_bell)
  • added header to every .json file to differentiate them (you should reanalyze all your corpora, classes, and setups)
  • when loading a setup into any corpus matching abstraction (sp.corpusmatch, sp.corpusconvolver~, sp.corpussampler~) it will automatically enable that setup
  • improved default starting values in sp.controllers so it gives useful results while it autocalibrates
  • added ability to trigger sp.triggerbounce~ and sp.triggercloud~ with bangs as well as trigger/gates
  • added ability to trigger synthesis objects (sp.lpg~, sp.karplus~, sp.resonators~, sp.waveguidemesh~) with bangs as well as triggers/gates
  • added 8 more abstractions to the puredata version
  • changed FFT settings for medium and all sizes for corpus and setup analysis to have better pitch accuracy in the larger time scales. You should re-analyze all your own corpora and setups.
  • you can now load mp3 files into sp.corpuscreate
  • fixed M4L device loading bug(s)
  • abstractions that only function as part of an existing abstraction (sp.lpgcore~, sp.folderloop, etc…) have had their sp. prefix replaced with widget and have had their help/reference pages removed
2 Likes
42

So after quite a long time of development and documentation I am ready to release Data Knot v1.0 (formerly SP-Tools), a Max package of machine learning tools for low latency real-time performance. The package, along with a load of tutorial videos, will go live on the Max Package Manager next week on the 15th of October.

It’s a monumental update. The updated package is made up of 125 objects across 13 categories spanning low latency onset detection, onset-based and real-time descriptor analysis, classification and clustering, regression and prediction, corpus analysis and querying, synthesis and modeling, audio, data, and CV processing, and a slew of other abstractions that are optimized for low latency applications.

To celebrate the launch, I will be doing a livestream on YouTube at 8pm (GMT+1) / 3pm (EST). (livestream link, Discord event link)

Leading up to the launch I will be posting a couple of videos. The first is a mini teaser showing a bit of what’s in store with the second one being the full Performance and Musical Examples video.

1 Like
43

And here’s the full performance video:

2 Likes
